Product Features
- Support 5-mode full network pass LTE-TDD,LTE-FDD,WCDMA,TD-SCDMA,cellular network, i.e., support for mobile, Unicom 2G/3G/4G, Telecom 4G network, optional sub-models to support a specific network
- Support RS485 to 2G/3G/4G data transmission, serial port rate up to 460800bps
- Supports up to 3 TCP/UDP connections, each connection supports 1400 bytes of data buffer
- Supports multiple operating modes: network passthrough mode, HTTP mode, MQTT, WebSocket
- Support IOTService software configuration, can be through the network remote dynamic modification of module parameters
- Support SMS AT command configuration function
- Supports the functions of registration packet (content of registration packet, sending mode) and heartbeat packet (content of heartbeat packet, sending mode, sending interval time), the registration packet supports the combinations of ICCID, IMEI, IMSI, software version number, cellular network connection status and so on.
- Support NTP to get real time
- ModbusTCP to ModbusRTU support
- Supports Industrial Cloud IOTBridge for remote configuration and control
- Supports Industrial Cloud IOTBridge working hours, e.g. you can set 10:00 to 10:30 to connect to IOTBridge every day to save traffic.
- Support serial port, network OTA upgrade device firmware
¥271

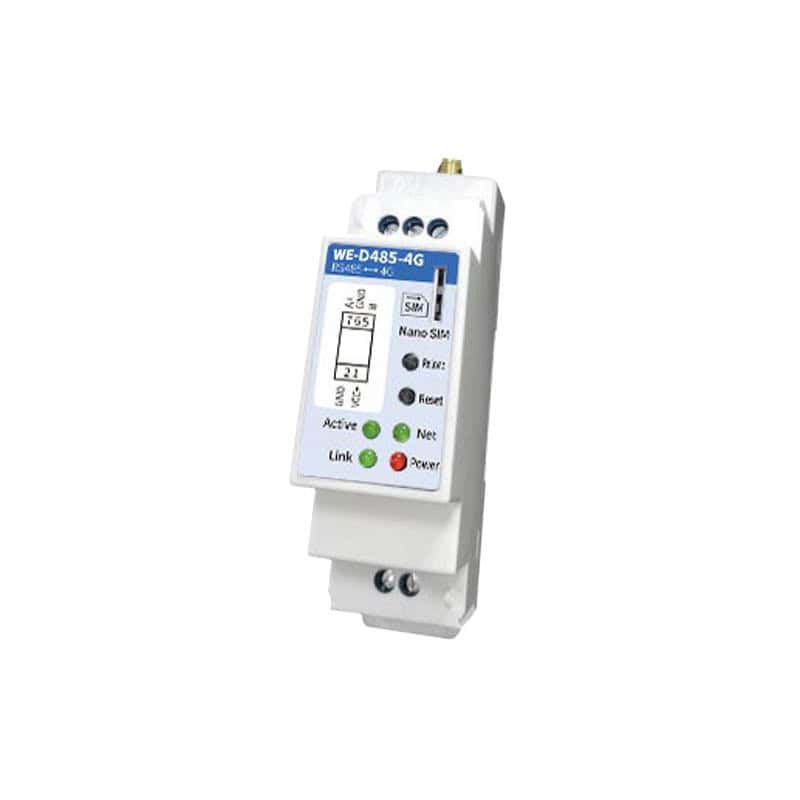

WE-D485-4G is a 5-mode all-network 4GDTU that supports mobile, Unicom 2G/3G/4G, and Telecom 4G networks (Telecom 3G is not supported), and the network supports a maximum downstream rate of 150Mbps and a maximum upstream rate of 50Mbps, so it can work well in remote areas that lack 3G and 4G network coverage (mobile, Unicom).
WE-D485-4G has built-in rich network protocols and integrated RS485 standard data transmission interface, which does not require any driver and is convenient for traditional serial devices to be used in networking. It can meet almost all M2M requirements, including automotive and personal tracking services, wireless POS, smart metering, industrial-grade PDA, bike sharing, car sharing and other M2M applications.The detailed specifications of WE-D485-4G series in terms of network protocols are shown in the table below, and the red color is the commonly used models in China.
| Weight | 25 g |
|---|---|
| Dimensions | 102.03 × 64.95 × 27.5 mm |
specification
| categorization | parameters |
| System Information | |
| Processor/Main Frequency | Cortex-M3/96MHz |
| operating system | FreeRTOS |
| 2G/3G/4G Interfaces (only listed) WE-D485-4G (other sub-model bands vary) | |
| firing power | LTE-TDD: Class 3 (23dBm+1/-3dB) |
| LTE-FDD: Class 3 (23dBm±2dB) | |
| WCDMA: Class 3 (24dBm+1/-3dB) | |
| TD-SCDMA: Class 3 (24dBm+1/-3dB) | |
| GSM900: Class 4 (33dBm±3dB) | |
| DCS1800: Class 1 (30dBm±3dB) | |
| GSM900 8-PSK: Class E2 (27dBm±3dB) | |
| DCS1800 8-PSK: Class E2 (26dBm±3dB) | |
| receiver sensitivity | FDD B1: -96dBm( 10M) |
| FDD B3: -96dBm( 10M) | |
| FDD B5: -96dBm( 10M) | |
| FDD B8: -96.5dBm( 10M) | |
| TDD B38: -96dBm( 10M) | |
| TDD B39: -97dBm( 10M) | |
| TDD B40: -96.5dBm (10M) | |
| TDD B41: -96dBm( 10M) | |
| WCDMA B1: - 110dBm | |
| WCDMA B8: - 111dBm | |
| TDSCDMA B34: - 109dBm | |
| TDSCDMA B39: - 109dBm | |
| GSM 900M: - 109dBm | |
| GSM 1800M: - 109dBm | |
| LTE | Maximum support for non-CA CAT4 |
| Supports 1.4~20MHz RF bandwidth | |
| Downlink support for multi-user MIMO | |
| WCDMA | 3GPP R8 DC-HSPA+ |
| 16-QAM,64-QAM and QPSK modulation | |
| TD-SCDMA | CCSA Relese 3 |
| GSM/Cellular | R99: |
| CSD Transmission Rate: 9.6Kbps/ 14.4Kbps | |
| Cellular network: | |
| Supports cellular multi-slot class 12 | |
| Coding method: CS-1/CS-2/CS-3/CS-4 | |
| serial port (computing) | |
| port number | 1 |
| interface standard | RS485 |
| data bit | 7, 8 |
| stop bit | 1, 2 |
| check digit | None, Even, Odd |
| baud | TTL: 1200 bps~460800 bps |
| flow control | no-flow control |
| half-duplex | |
| (RS485) Softstream | |
| hardware | |
| Configuration | Serial AT Command |
| IOTService Serial Configuration Software | |
| IOTService Network Configuration Software | |
| Firmware Upgrade | Serial or OTA Upgrade |
| Basic parameters | |
| SIM Card Interface | Nano SIM ( 1.8V/3V) |
| sizes | 102.03 x 64.95 x 27.50 mm |
| operating temperature | -40 ~ 70° |
| preservation environment | -40 ~ 85°C , 5 ~ 95% RH (no condensation) |
| Input Voltage | WE-D485-4G-H: 100~240VAC@50~60Hz |
| WE-D485-4G-M: 9～48VDC@ 1A | |
| WE-D485-4G-V: 200～400VAC@50～60Hz | |
| average current | ~80mA@9VDC |
| 2A Peak | |
| peak current | 2A |
Related drawings
Overall dimensions
Internal structure:
Mounting method:
RS485 have lead wires are A (data +) and B (data -), and equipment RS485 connection A (+) connected to the A (+), B (-) connected to the B (-), interference in the case of a serious proposal to connect GND together.
This product can take 32 terminal 485 devices. The maximum communication distance is 1200 m. The 485 termination resistor is 120 ohms, which is usually necessary when wiring over 300 meters. Note that when wiring, A+ and B- must be a pair of twisted pairs to minimize signal interference.
Areas of application:
The WE-D485-4G module connects serial devices to the Internet and transfers serial data in compliance with the TCP/IP protocol.
- . Remote Device Monitoring
- . Production Asset Tracking and Monitoring
- . Security
- . Industrial Sensors and Controllers
- . Healthcare Equipment
- .ATM equipment
- . Data Acquisition Equipment
- .UPS Power Management Devices
- . Telecommunications equipment
- . Data display equipment
- . Handheld devices
- . Attendance systems and terminals
Resource support
Models and accessories
WE-D485-4G is a cellular solution for serial device networking function, data transmission through cellular network makes product integration very easy, this product complies with EMC Class B safety level, and can pass the relevant certification test in each country.
